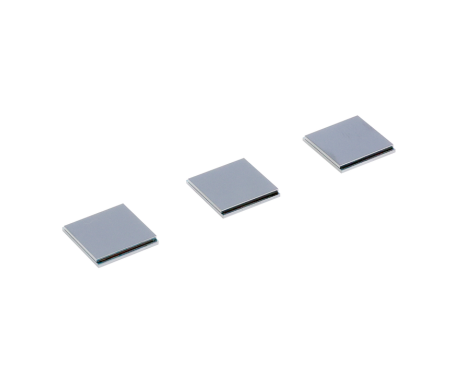

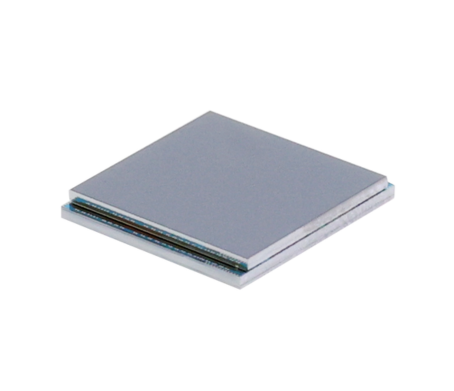

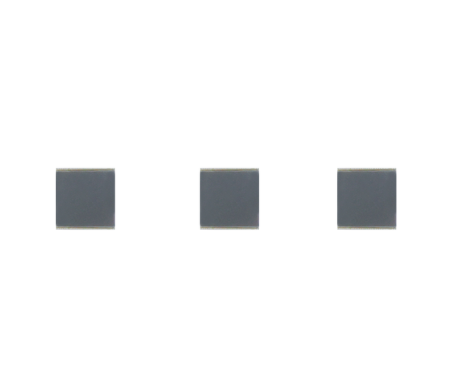

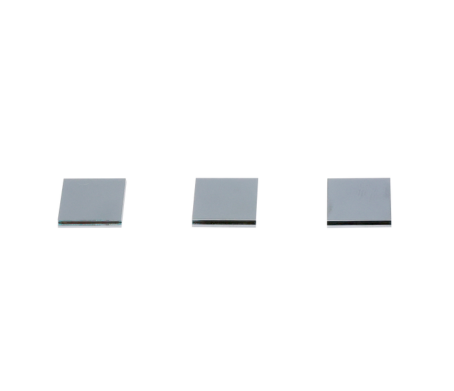

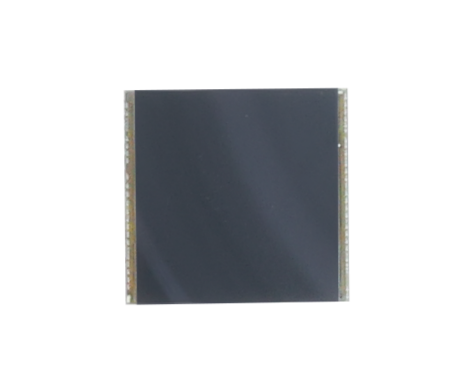

RTD6122W is a wafer-level packaged LWIR sensor (640× 512, 12μm) based on vanadium oxide (VOx) microbolometer with a compact design, low-power-consumption, high sensitivity and high performance. RTD6122W applies to multiple scenarios, e.g. security monitoring, industrial temperature measurement, etc.
1. VOx microbolometer
2. Low power consumption:<170 mW
3. Package weight:<0.5g
4. High sensitivity: NETD<50 mK
5. Thermal time constant:<12 ms
6. WLP package
Security Monitoring
Important Area Patrol
People Observation
