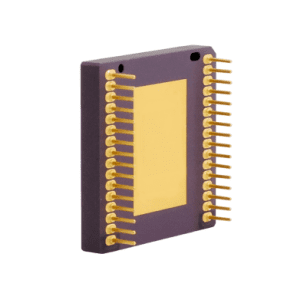

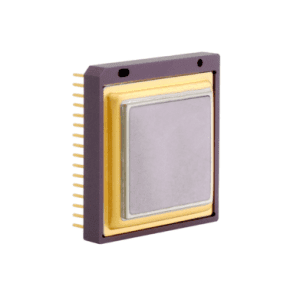

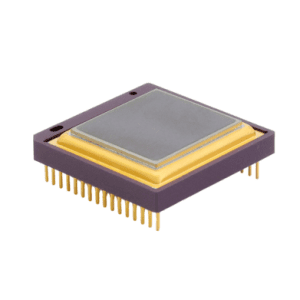

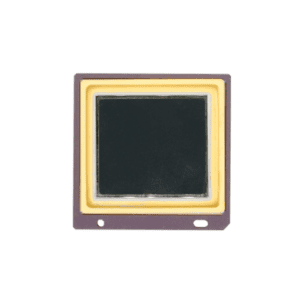

RTD6122C is a ceramic-packaged LWIR sensor (640×512, 12μm) based on vanadium oxide (VOx) microbolometer with an 8-14 µm wavelength range, high performance, low power consumption and high sensitivity. RTD6122C applies to multiple scenarios, e.g. outdoor night vision, fire prevention, etc.
1. VOx microbolometer
2. Low power consumption:<170 mW
3.TEC-less
4. High sensitivity: NETD<40 mK
5. Thermal time constant:<12 ms
6. RoHS-compliant lead-free package
Visible Light Image of Smog
RTD6122C for Thermal Image of Smog
RTD6122C for Big Scene
RTD6122C for Thermal Power Company
